Pioneers In Custom Innovation

Choosing the right partner is critical. Our solutions bring the power of experience in customization, redefining the way you innovate.

About Us

We are a cutting-edge manufacturer of mechanical cable assemblies for medical devices, partnering with the best in medical innovation to push boundaries and industry standards.

Ready to start your design process?

We believe that collaboration is the key to any truly successful project. Your ideas deserve to be heard, and our teams are here to listen, assisting with technical direction as needed.

We created this sample pack* to get your wheels turning and help you explore the building blocks of ingenuity.

* Other sample materials are available upon request.

Beaded Strand Systems

Spherical ball-end feature on flexible strands and cables. Uniform composition, contiguous volume.

Materials: Tungsten, Nitinol, 304SST

Beaded Wire Systems

Semi-rigid wires and tubes with spherical ball-end feature. Uniform composition, contiguous volume.

Materials: Nitinol, Titanium, 304SST

Advanced Mechanical Assemblies

Cleanroom processed mechanical cable and cord assemblies.

Materials: Vectran, MP35N, Tungsten, 304SST

bundle 1 of 3

Beaded Strand System™

These spherical ball-end features are found on flexible strands and cables with uniform composition and contiguous volume. The bead of this system provides a secure attachment point without the need to incorporate external hardware, eliminating undesirable weight or friction in a system.
‍
Materials: Tungsten, Nitinol, 304SST

Flexible Strands and Cables

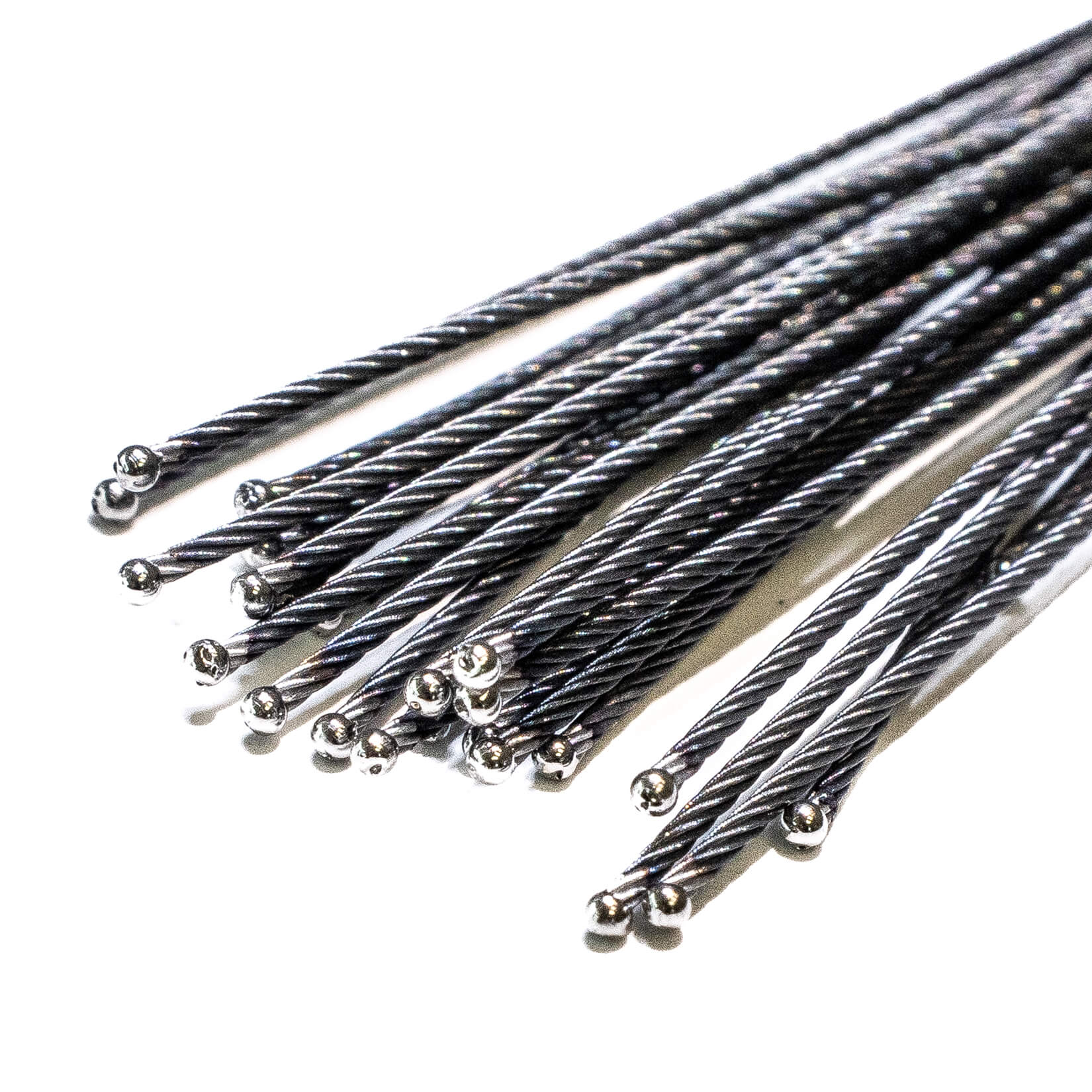

Beaded Strand System 01

0.027″ 7×37 cable, Tungsten, 0.040″ bead

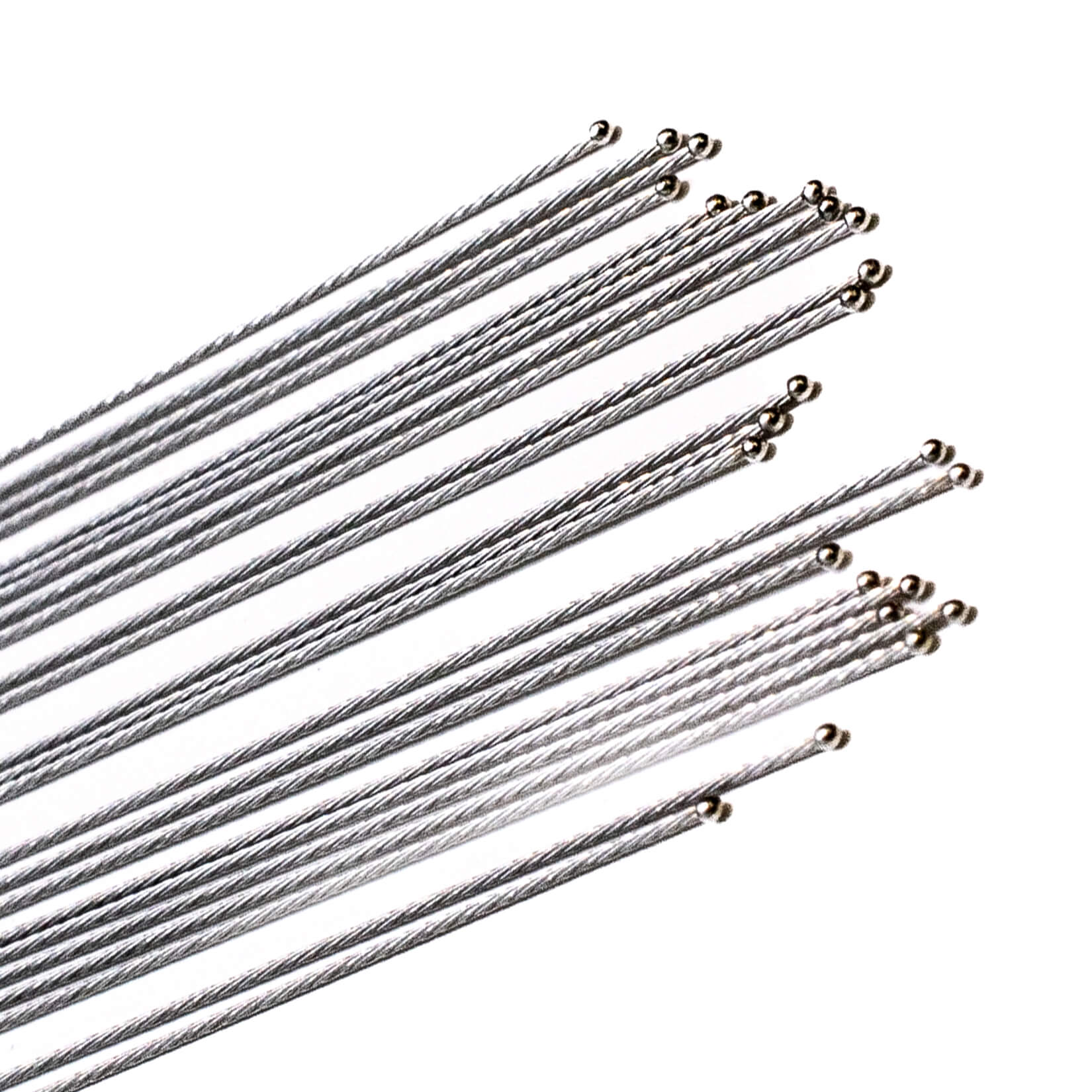

Beaded Strand System 02

0.012″ 1×7 cable, Nitinol Oxide, 0.020″ bead

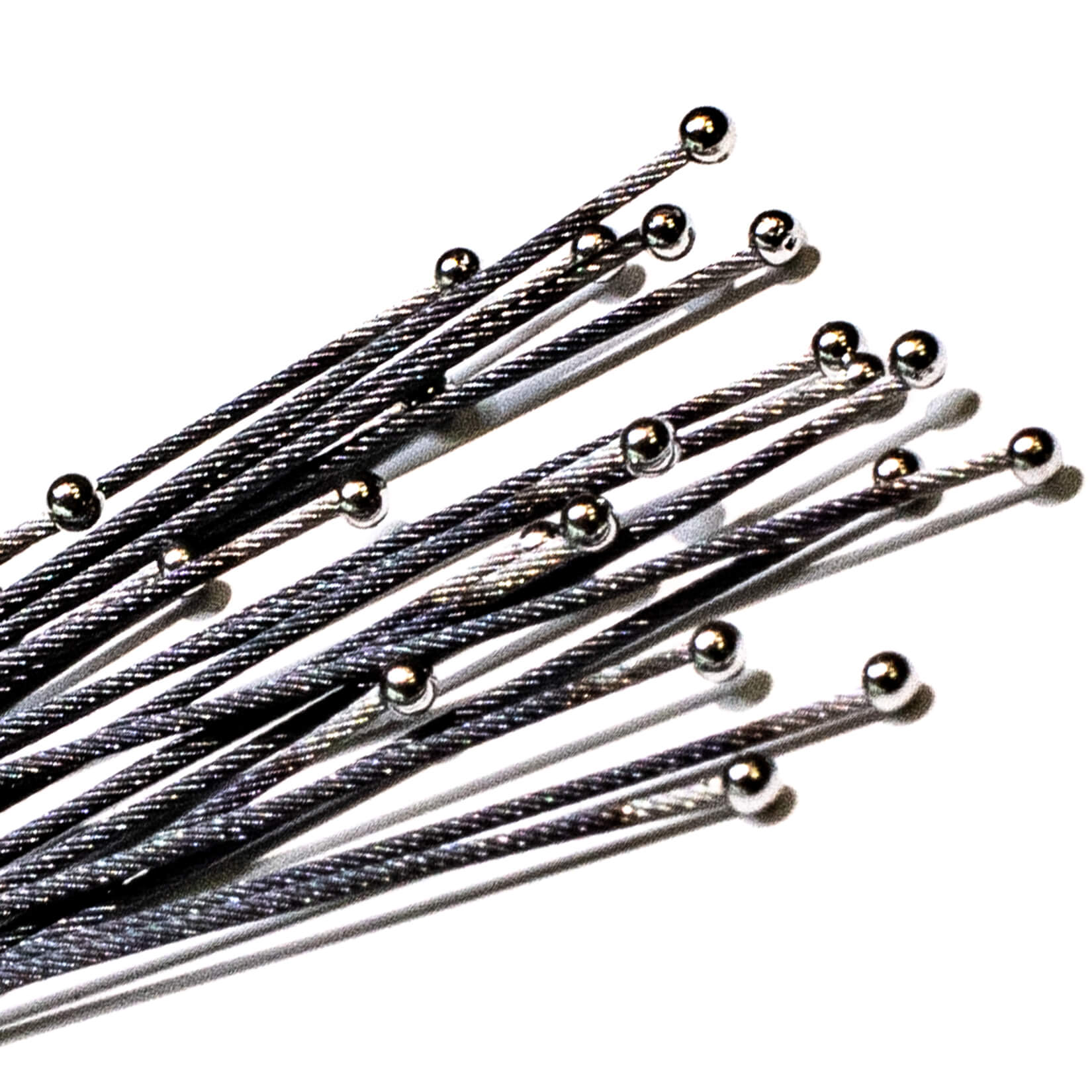

Beaded Strand System 03

0.014″ 8×19 cable, Tungsten, 0.035″ bead

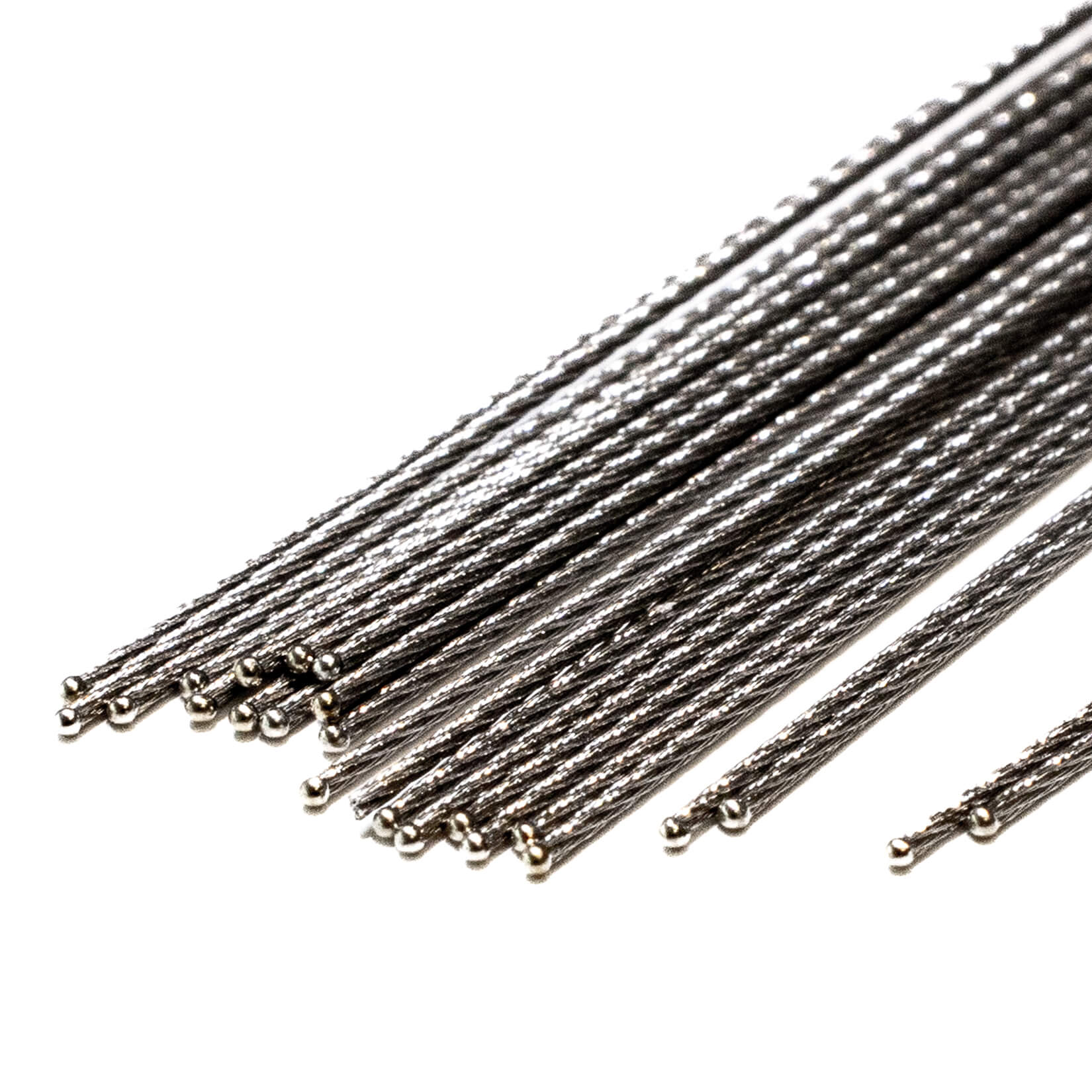

Beaded Strand System 04

0.018″ 7×7 cable, 304SST, 0.020″ bead

Beaded Strand System 05

0.014″ 1×19 cable, Nitinol Etched, 0.030″ bead

bundle 2 of 3

Beaded Wire System™

Our semi-rigid wires and tubes with spherical ball-end features have a uniform composition and contiguous volume. With a superior mechanical advantage, the bead can be received into a mating pocket and act as a push-pull wire or ball joint. The round feature can prevent tears and scratches on part surfaces that it may come in contact with.

Materials: Nitinol, Titanium, 304SST

Semi-rigid Wires and Tubes

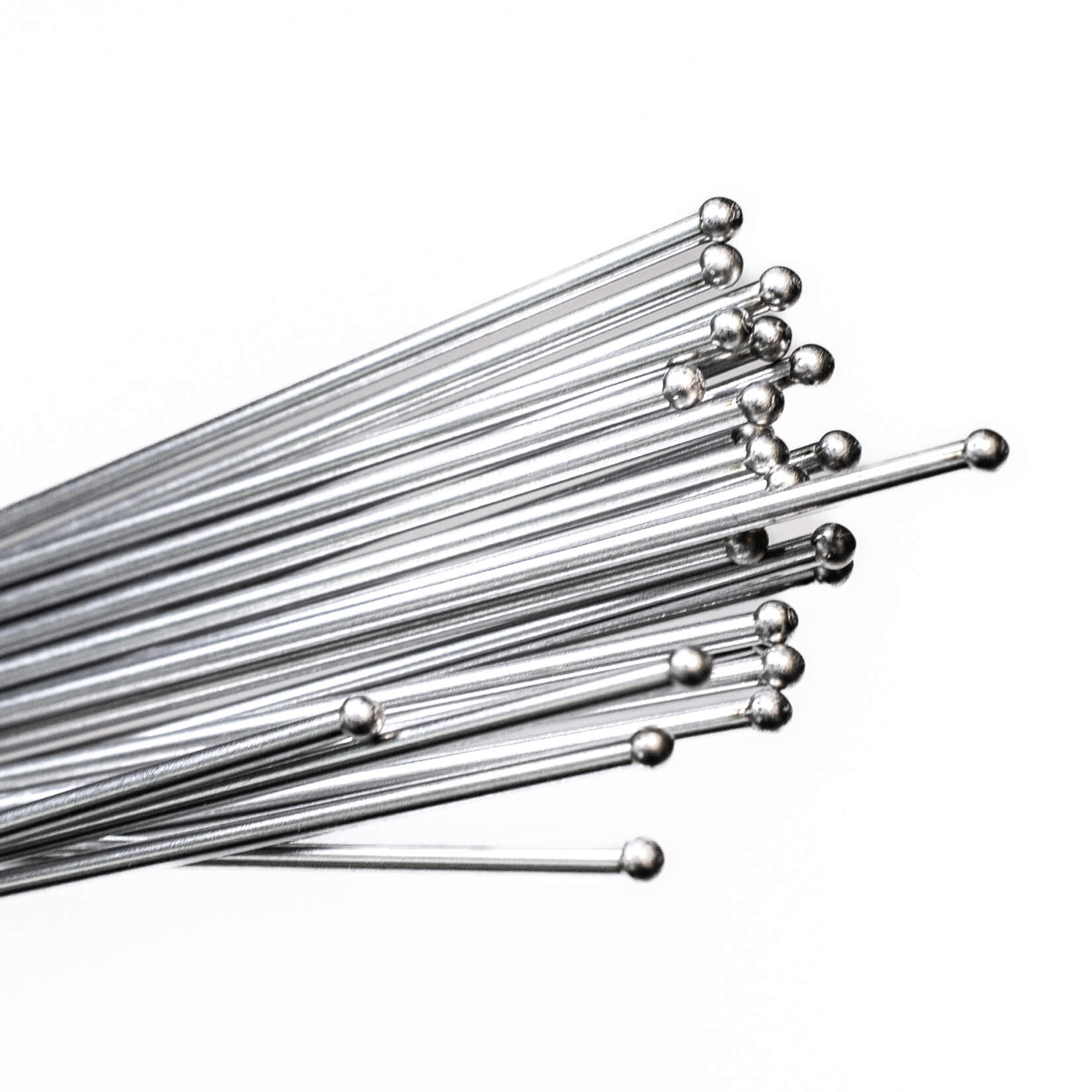

Beaded Wire System 01

0.042″ OD hypotube, 304SST, 0.060″ bead

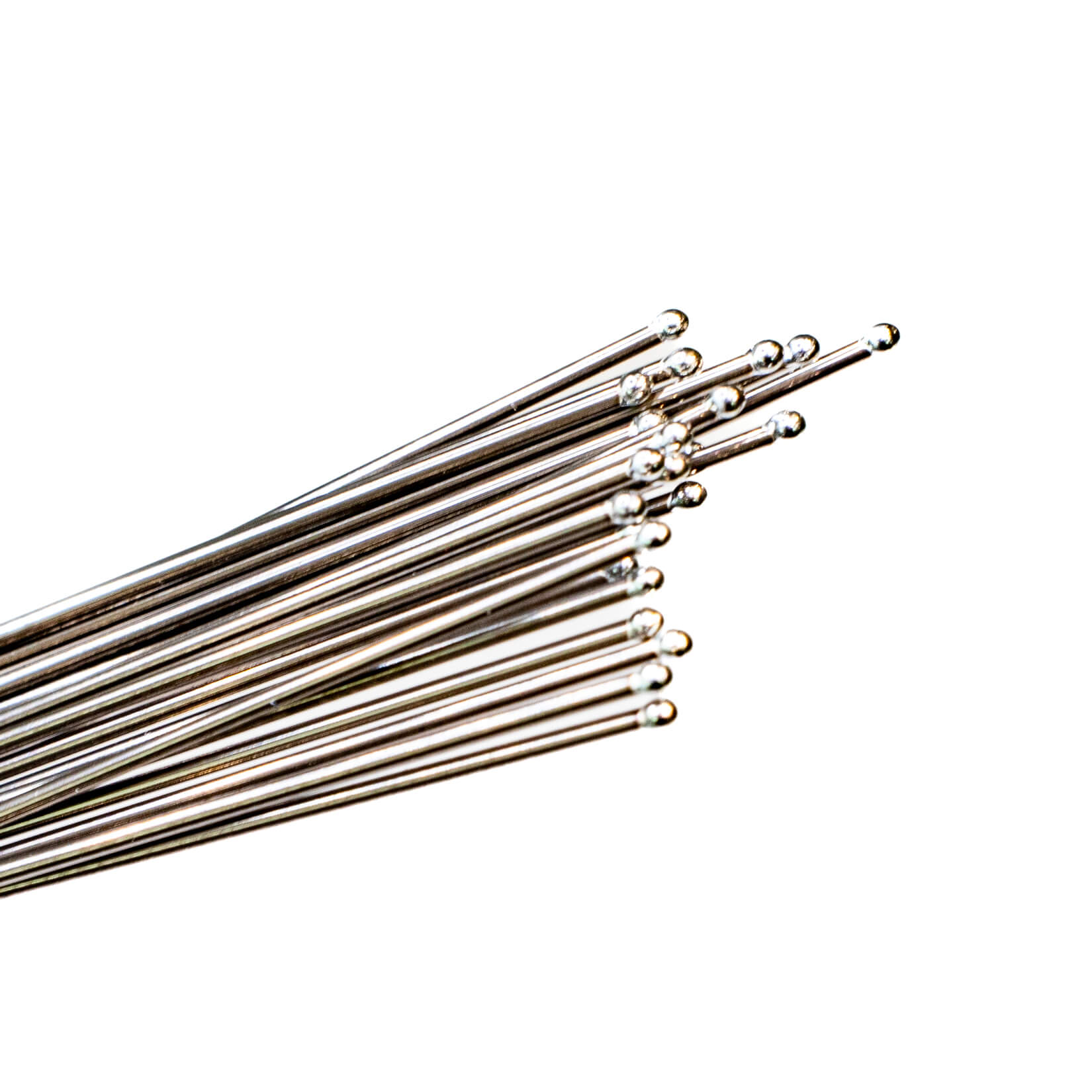

Beaded Wire System 02

0.025″ Nitinol wire, 0.035″ bead

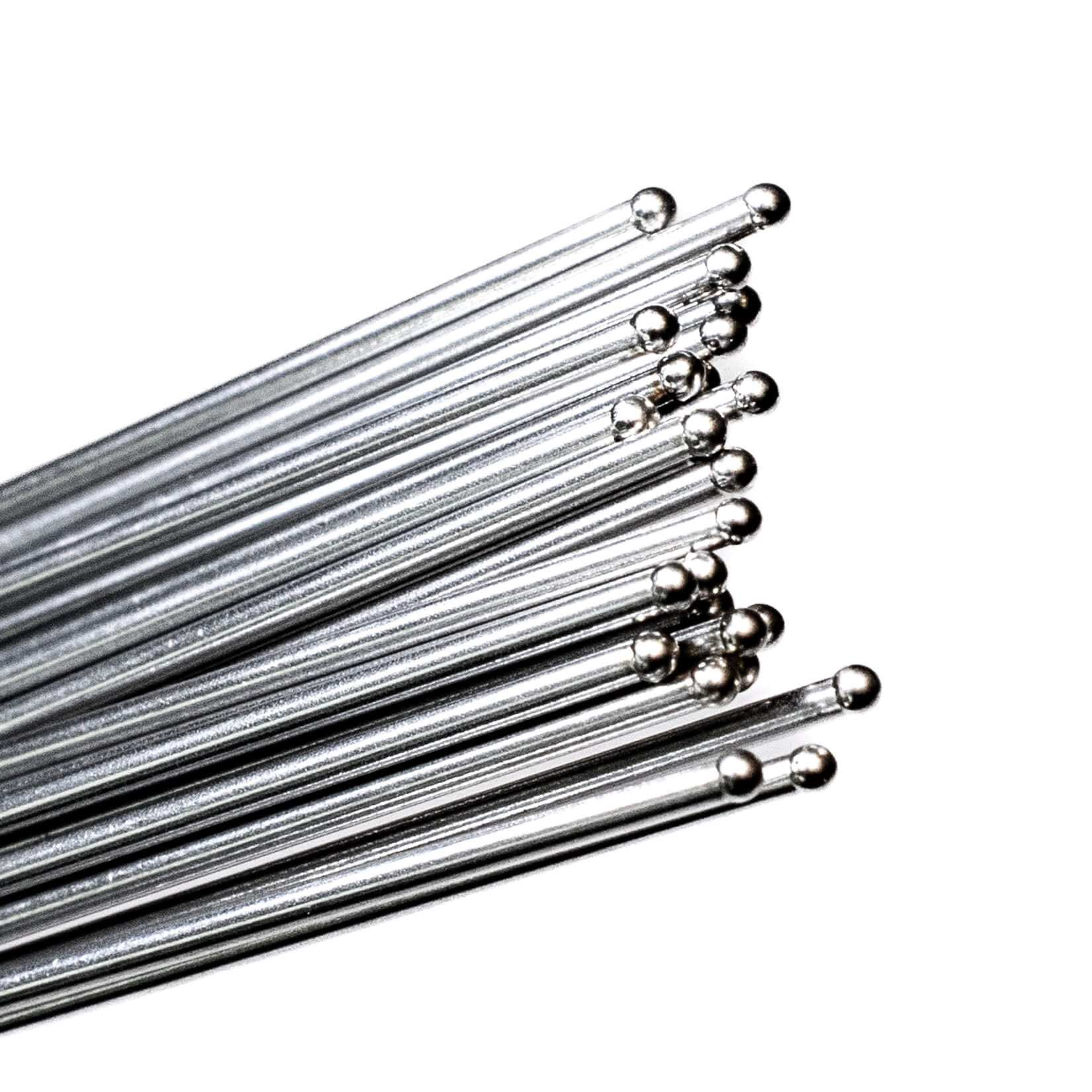

Beaded Wire System 03

0.032″ OD hypotube, 304SST, 0.045″ bead

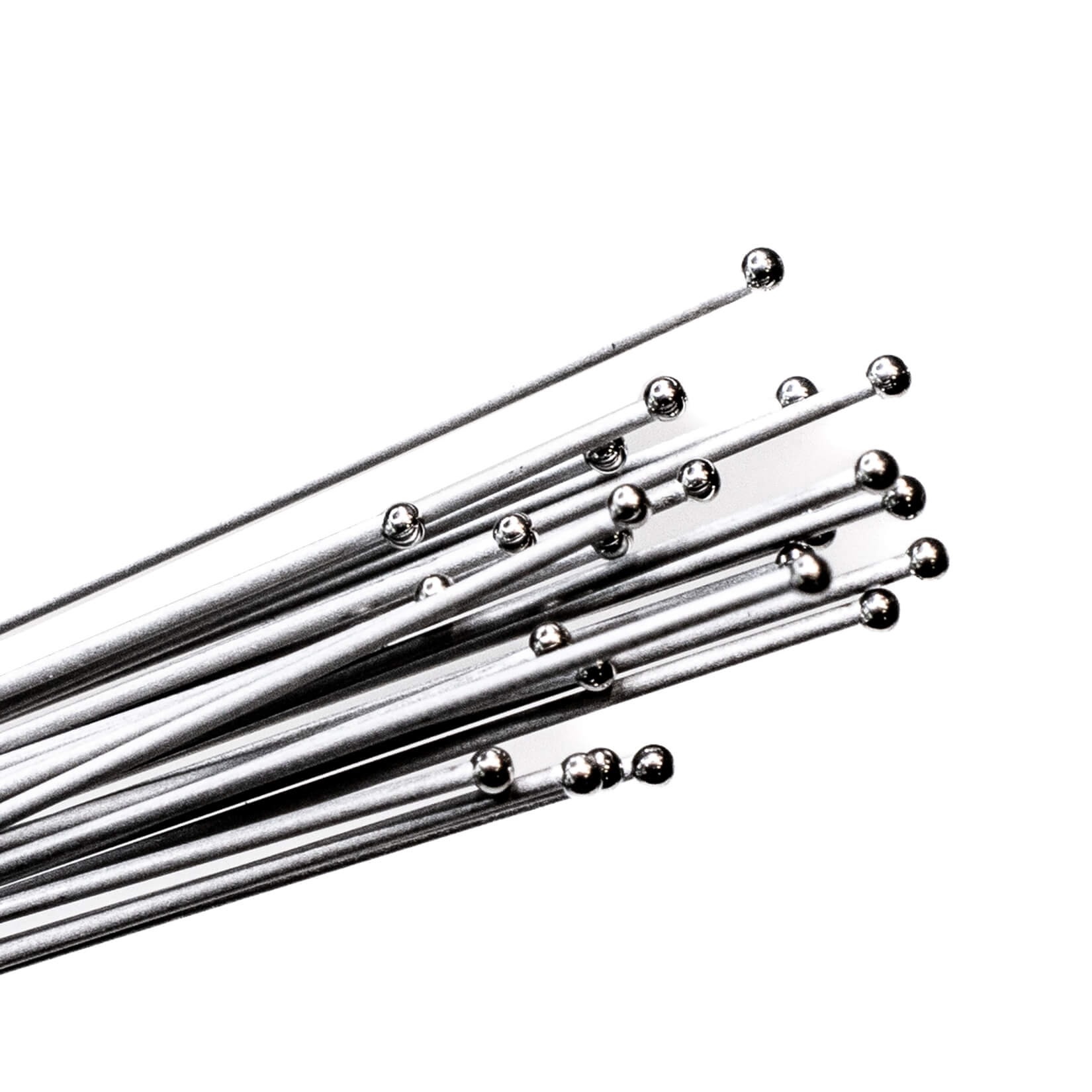

Beaded Wire System 04

0.0156″ Ti6-4 wire, 0.030″ bead

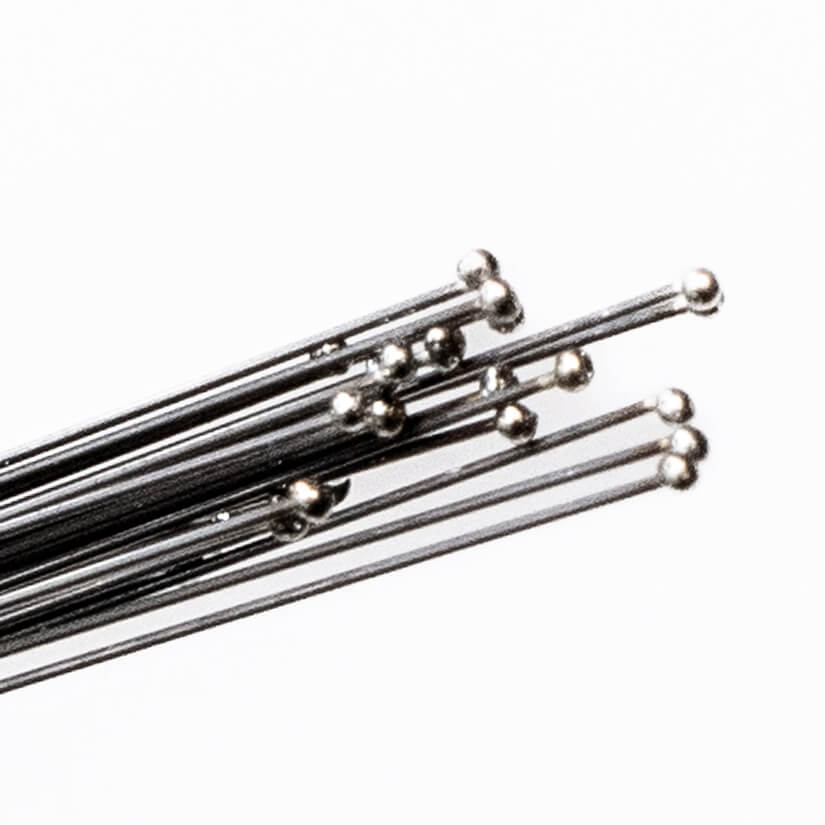

Beaded Wire System 05

0.006″ Nitinol wire, 0.025″ bead

bundle 3 of 3

Advanced Mechanical Assembly

Assembled in our ISO 7 (Class 10k) clearnroom, Strand Products mechanical cable assemblies are a manufactured solutions for even the most complex applications including: Robotic arms, Angioplasty guidewires, Endoscopes, Fluoroscopy, Steerable catheters, and Limb prosthetics.‍

Materials: Vectran, MP35N, Tungsten, 304SST, 316SST, Nitinol

Mechanical Cable and Cord Assemblies

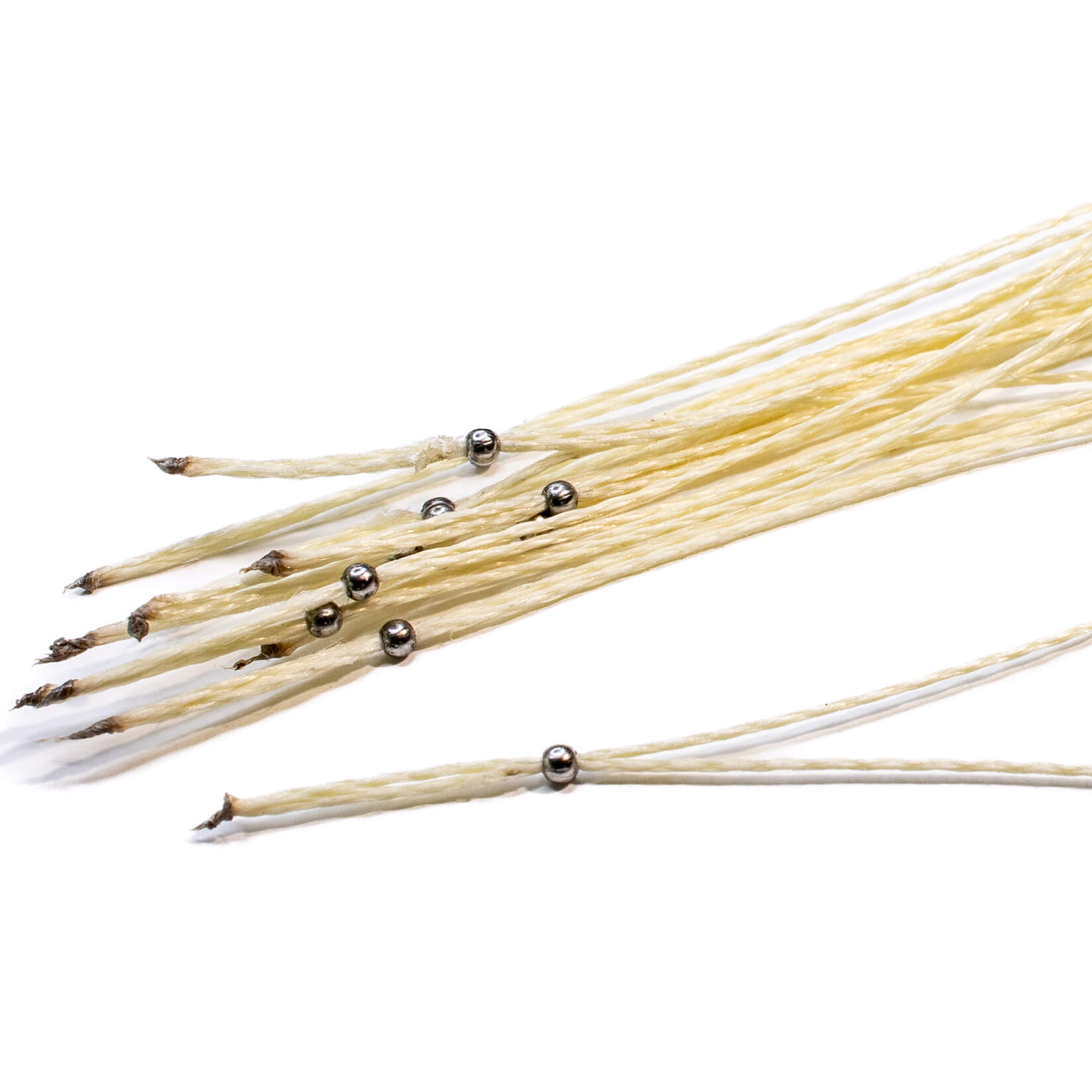

Advanced Mechanical Assemblies 01

0.016″ fibrous cord, Vectran, 0.050″ ball swage, 304 Stainless

Advanced Mechanical Assemblies 02

0.012″ 1×7 cable, 316SST, Cylinder swage double loop, 316 Stainless

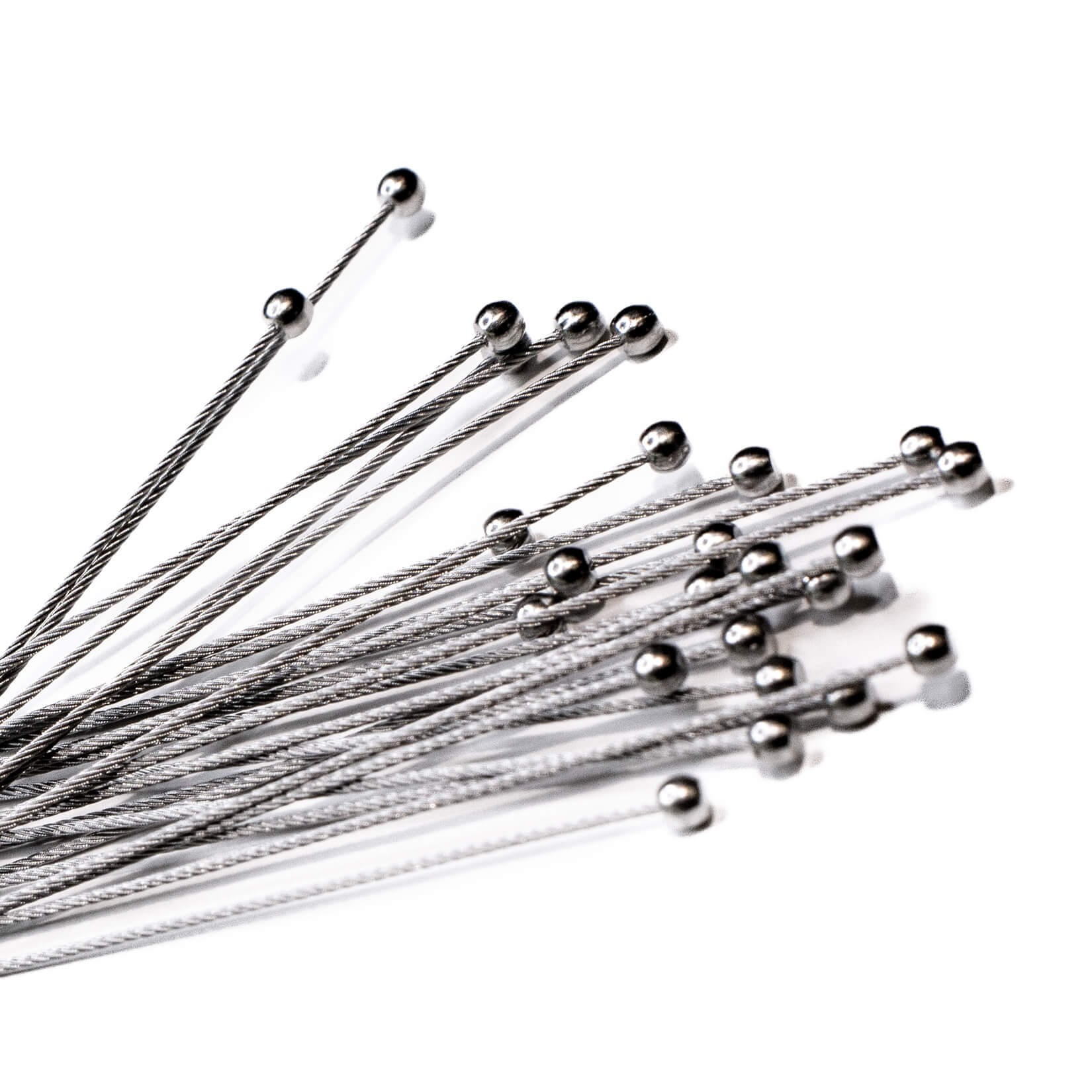

Advanced Mechanical Assemblies 03

0.014″ 7×7 cable, MP35N, 0.090″ and 0.060″ ball swage, Titanium

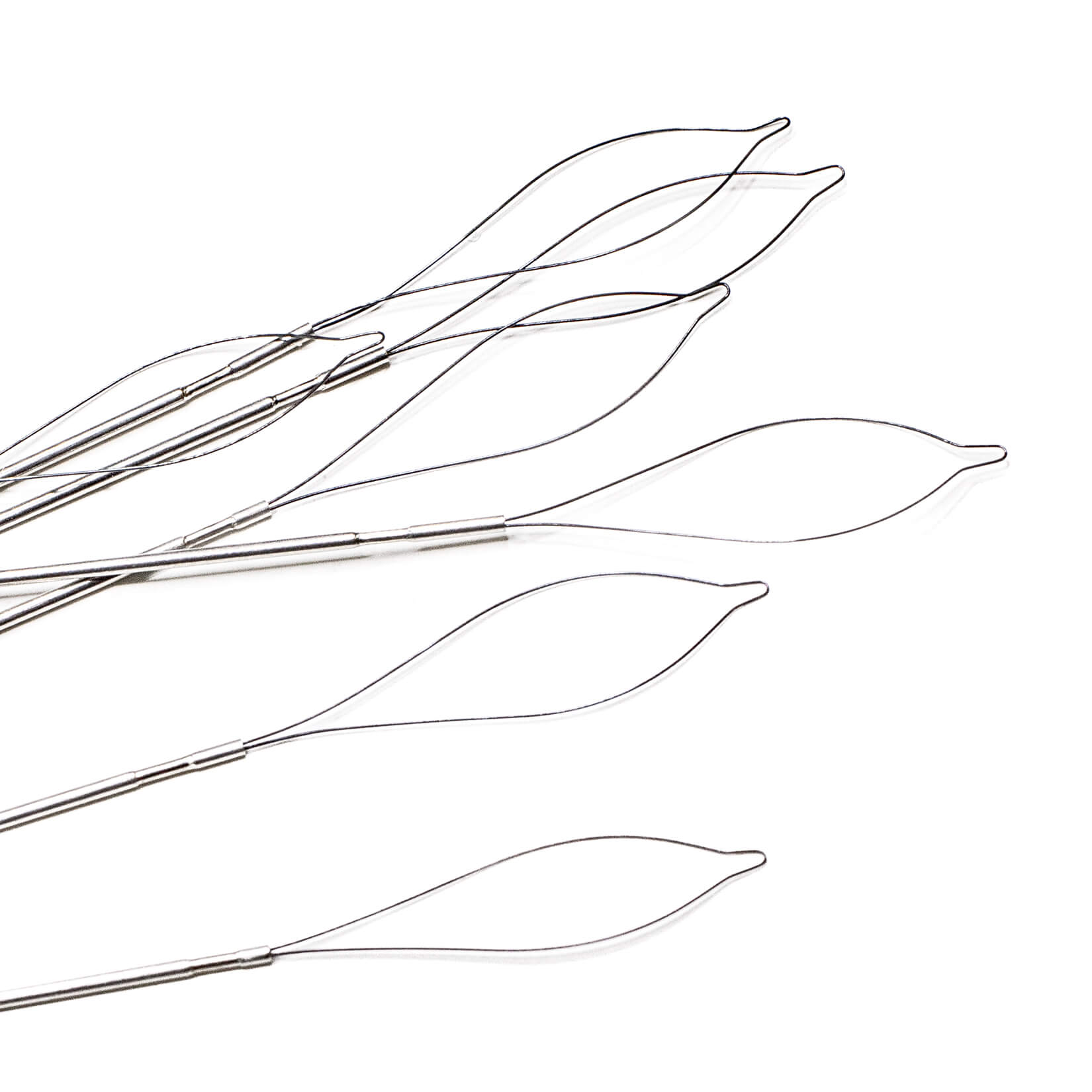

Advanced Mechanical Assemblies 04

0.006″ Nitinol monofilament wire, Suture Passer, shape set swaged onto 304SST hypotube

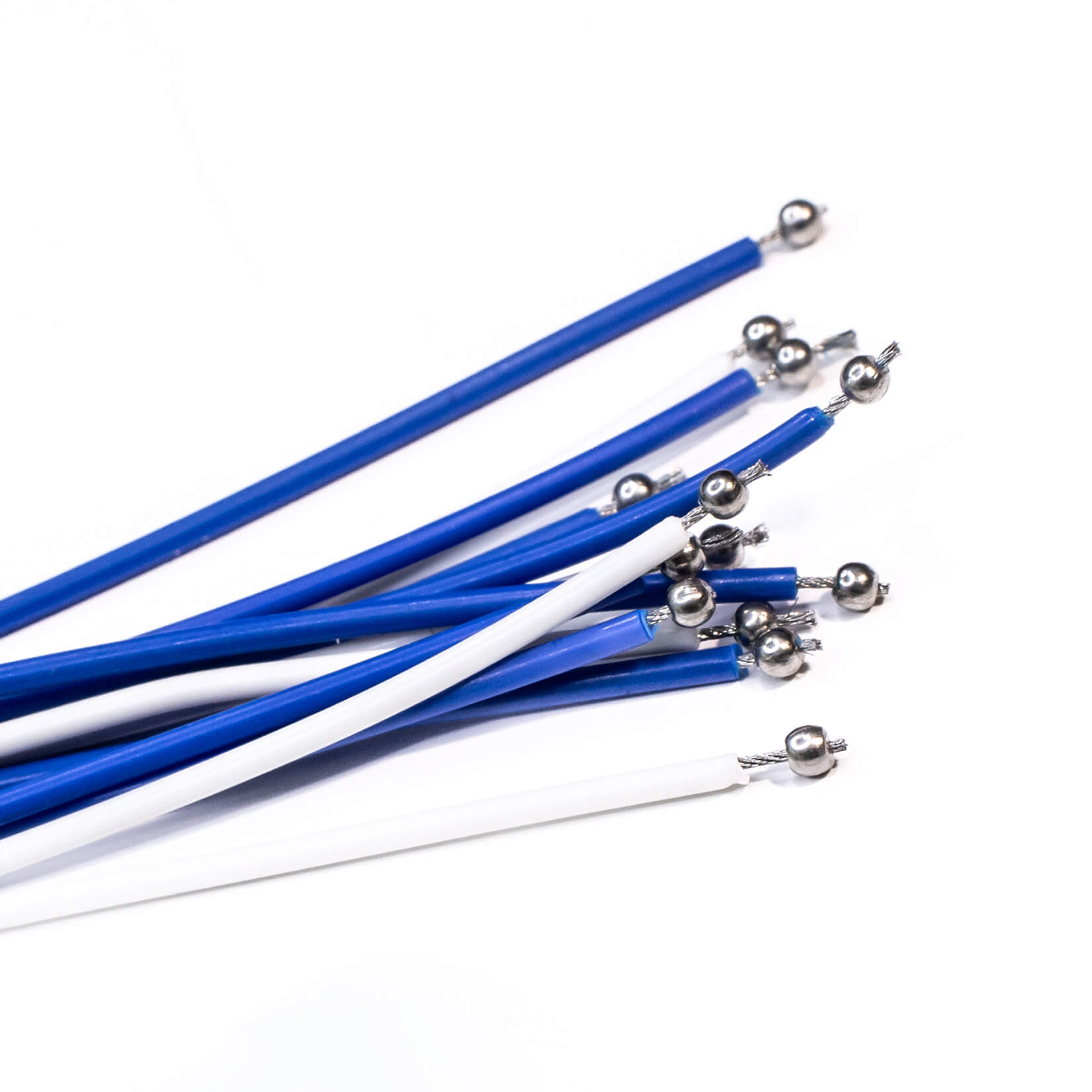

Advanced Mechanical Assemblies 05

0.016″ 7×7 cable, 304SST, Pebax coated, 0.062″ ball swage, 304 Stainless

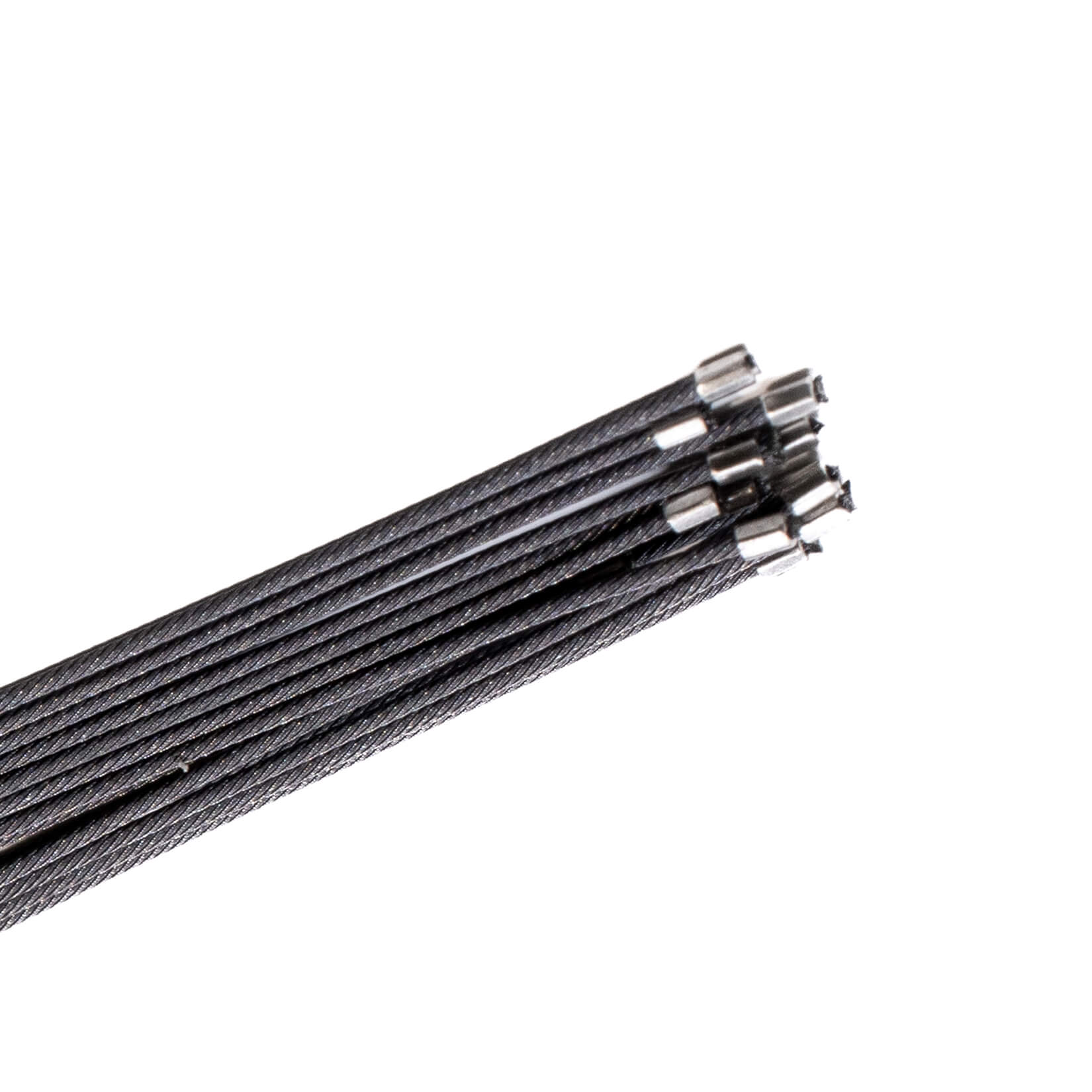

Advanced Mechanical Assemblies 06

0.019″ 8×19 cable, Tungsten, Hex and cylinder swage, 304 Stainless
